| الـ MOQ: | 1 |
| سعر: | US $3500.00 - 4880.00/ Set |
| العبوة القياسية: | صندوق من الورق المقوى/قفص خشبي |
| فترة التسليم: | 6 ~ 8 أسابيع |
| طريقة الدفع او السداد: | تي/تي |
| القدرة على التوريد: | 500 مجموعة في السنة |

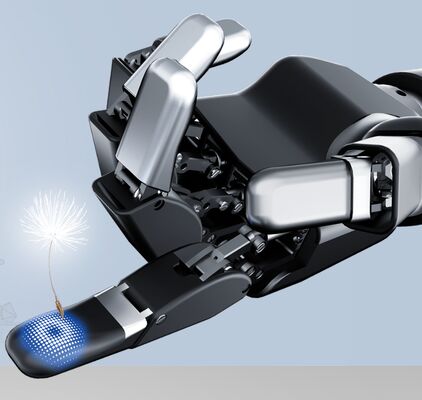

DH-Robotics DH-5-6 is a commercial 5-finger dexterous robotic hand with 6 active DOF. It uses tendon-driven actuation with micro linear actuators and integrates force/tactile perception for precise grasping. The hand is aimed at humanoid robot applications, collaborative robot end-effectors, research and education platforms where cost-effective dexterity is required.
| Parameter | Specification |
|---|---|
| Finger Count | 5 fingers |
| Active DOF | 6 |
| Total Joints | 12 |
| Actuation | Tendon-driven (micro linear actuators) |
| Sensing | Force / tactile feedback |
| Control | Hybrid position-force control |
| Communication | CAN / RS485 / EtherCAT |
| Weight | Approx. 400–550 g |
| Single Finger Force | 5–15 N (typical) |
|
|
